Crane Serie 110000 E ASC Plus -
Select the model:

Crane E5 - Capacity diagram

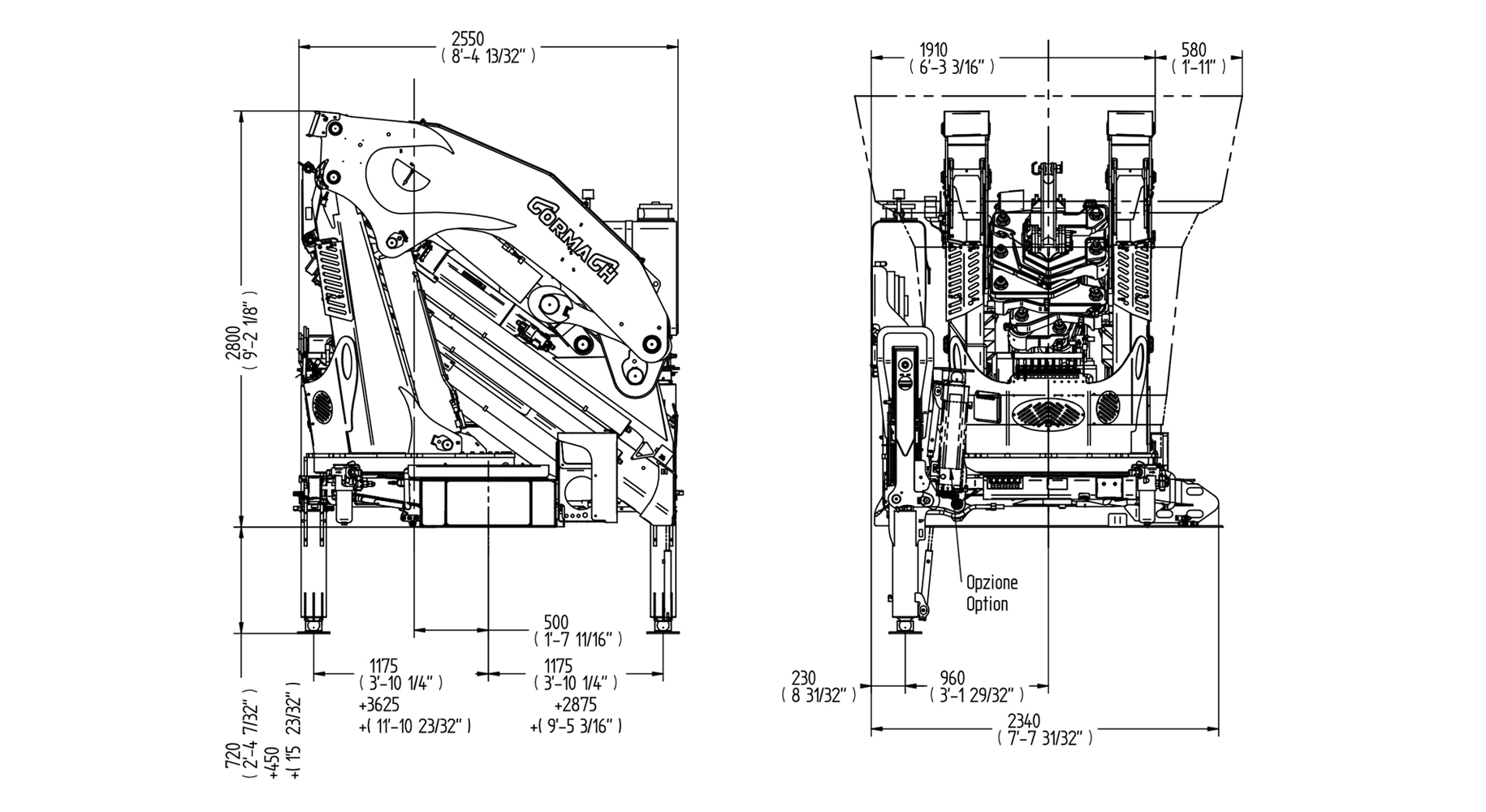

Crane E5 - Table of dimensions

Crane E5 - Information sheet

Technical characteristics	Metric system	Imperial system
Static moment at tower pin	109400 daN/m	791443 lbs/ft
Hydraulic reach	12860 mm	42'2"
Length	1910 mm	6'3"
Width	2550 mm	8'4"
Height	2800 mm	9'2"
Weight (without oil and assembly)	9955 kg	21947 lbs
Capacity	21350 kg	47069 lbs
Reach with manual extensions
Slewing torque	10500 daN/m	75961 lbs/ft
Stabiliser protrusion	3625 + 2875 mm	11'11" + 9'5"
Stabiliser width	8850 mm	29'
Pump capacity	100 l/min	26 US gal/min
Pressure	320 bar	4550 psi
Tank capacity	280 l	73 US gal
