Crane Serie 240000A E -
Select the model:

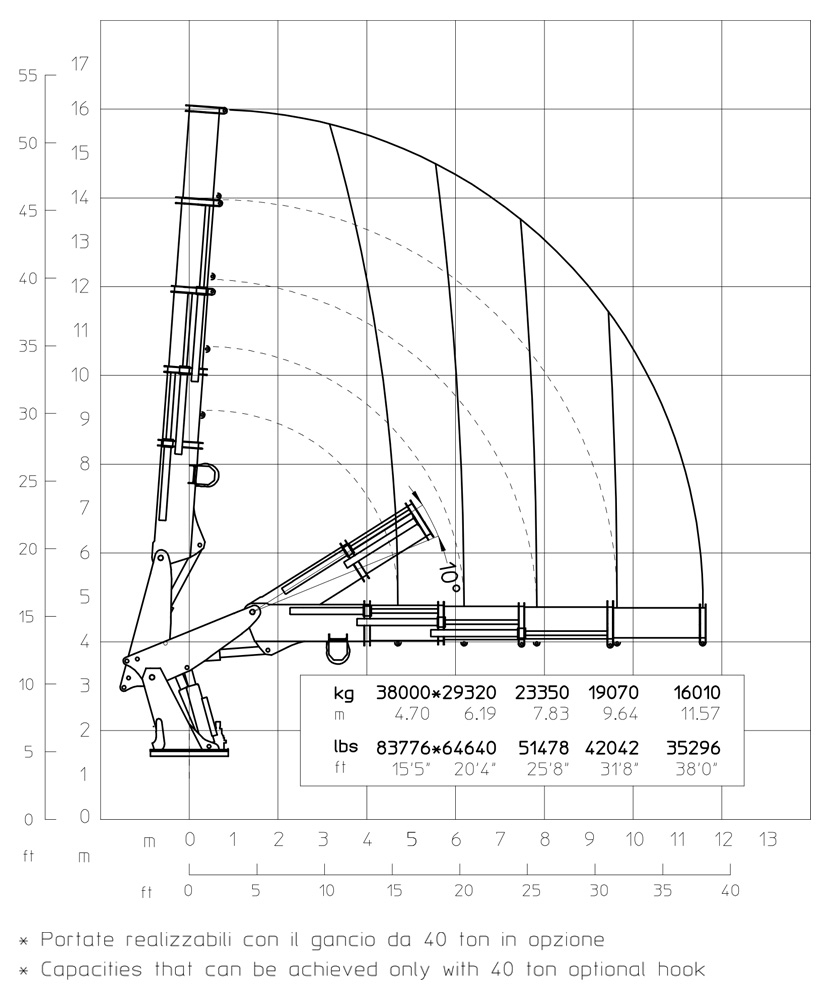

Crane E4 - Capacity diagram
E4 - Capacity diagram zoom
Crane E4 - Table of dimensions
Serie 240000A E - Table of <strong>dimensions</strong> zoom
Crane E4 - Information sheet
Technical characteristics Metric system Imperial system
Static moment at tower pin 229500 daN/m 1660295 lbs/ft
Hydraulic reach 11570 mm 37'12"
Length 7400 mm 24'3"
Width 2540 mm 8'4"
Height 2875 mm 9'5"
Weight (without oil and assembly) 21070 kg 46450 lbs
Capacity 38000 kg 83776 lbs
Reach with manual extensions
Slewing torque 22000 daN/m 159157 lbs/ft
Stabiliser protrusion 4921 + 4921 mm | 4766 + 4766 mm 16'2" + 16'2" | 15'8" + 15'8"
Stabiliser width 12140 mm 39'10"
Pump capacity 115 l/min 30 US gal/min
Pressure 320 bar 4550 psi
Tank capacity 640 l 169 US gal
E4 - Brochure
Download the full brochure - PDF
Crane E4 - Supplied as standard
Continuous rotation
Continuous rotation
Hydraulically extendible base crane stabilisers
Hydraulically extendible base crane stabilisers
Supplementary control disabled (1)
Supplementary control disabled (1)
Remote control
Remote control
Automatic Speed Control
Automatic Speed Control
Moment limiter
Moment limiter
Extended support plates
Extended support plates
Dual rotation
Dual rotation
Dual variable-flow pump
Dual variable-flow pump
Crane E4 - Optional
Rotating base crane stabilisers
Rotating base crane stabilisers
Supplementary control enabled (2)
Supplementary control enabled (2)
Winch
Winch
Basket
Basket
Self-levelling platform
Self-levelling platform
Marine crane treatment
Marine crane treatment
